MIPI D-PHY DSI RX (Receiver) in UMC 40HV
The MXL-DPHY-DSI-RX is a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI Alliance Specification for D-PHY v1.1.
The IP is configured as a MIPI Slave optimized for DSI (Display Serial Interface) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
The IP is configured as a MIPI Slave optimized for DSI (Display Serial Interface) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
查看 MIPI D-PHY DSI RX (Receiver) in UMC 40HV 详细介绍：
- 查看 MIPI D-PHY DSI RX (Receiver) in UMC 40HV 完整数据手册
- 联系 MIPI D-PHY DSI RX (Receiver) in UMC 40HV 供应商

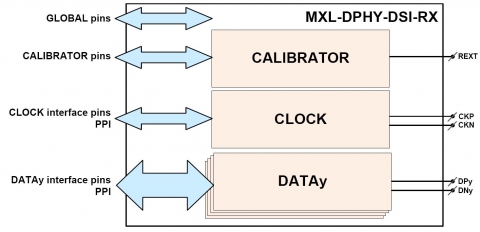

Block Diagram of the MIPI D-PHY DSI RX (Receiver) in UMC 40HV
