Multiplexing transceiver with 4 CSI2 inputs and a single CSI2 output
This IP multiplexes inputs from up to 4 CSI2 cameras, each with up to 4 data lanes, to a single CSI2 output stream, with up to 4 lanes. It comprises of existing VLSI PLus IP cores, optimized for CSI2 multiplexing, and glue logic
查看 Multiplexing transceiver with 4 CSI2 inputs and a single CSI2 output 详细介绍：
- 查看 Multiplexing transceiver with 4 CSI2 inputs and a single CSI2 output 完整数据手册
- 联系 Multiplexing transceiver with 4 CSI2 inputs and a single CSI2 output 供应商

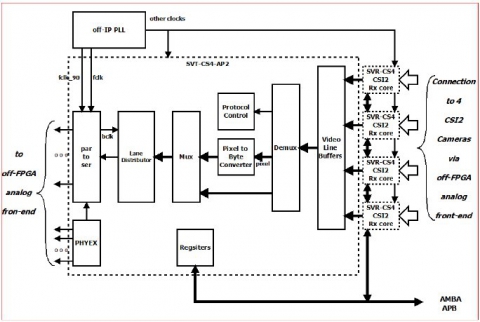

Block Diagram of the Multiplexing transceiver with 4 CSI2 inputs and a single CSI2 output
