Zynq SATA Storage Extension - Production Reference Design
MLE's Zynq SATA Storage Extension (Zynq SSE) is a fully integrated and pre-validated system stack comprising 3rd-party SATA Host Controller and DMA IP cores from ASICS World Services, a storage micro-architecture from MLE, Xilinx PetaLinux, and an Open Source SATA Host Controller Linux kernel driver, also from MLE. Zynq SSE utilizes the Xilinx GTP/GTX Multi-Gigabit Transceivers to integrate physical SATA connectivity.
Zynq SSE is delivered as a complete reference design for the Xilinx Zynq-7000 All Programmable SoC (Zynq), and effectively extends Zynq with one single SATA host port for HDD and SSD storage connectivity.
A novel license fee structure reflects the needs of Zynq's Embedded Linux users for simple and affordable SATA.
Zynq SSE is delivered as a complete reference design for the Xilinx Zynq-7000 All Programmable SoC (Zynq), and effectively extends Zynq with one single SATA host port for HDD and SSD storage connectivity.
A novel license fee structure reflects the needs of Zynq's Embedded Linux users for simple and affordable SATA.
查看 Zynq SATA Storage Extension - Production Reference Design 详细介绍：
- 查看 Zynq SATA Storage Extension - Production Reference Design 完整数据手册
- 联系 Zynq SATA Storage Extension - Production Reference Design 供应商

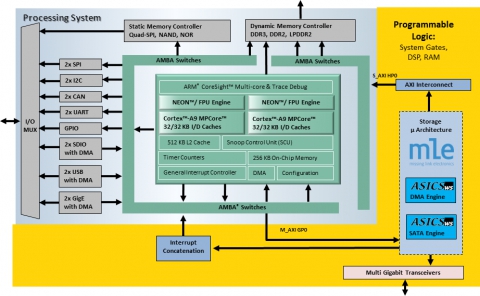

Block Diagram of the Zynq SATA Storage Extension - Production Reference Design
