xSPI - PSRAM Master
Arasan Chip System’s xSPI/PSRAM master IP is easy to use, simple to work with, quick to operate, and reliable under all conditions. It supports the xSPI JESD~251 standard from a standard AXI3 or AXI4 slave interface. It also supports HyperRAM, HyperFlash, and features backwards compatibility support for Octal SPI, QSPI, DSPI, and SPI interfaces.
The xSPI/PSRAM master IP is designed so that a user design may immediately access memory from the xSPI device in SPI mode, or alternatively issue a command to switch to any other mode. Additionally, a DMA command may be issued to copy memory to or from the xSPI device and anywhere else on the system bus.
The xSPI/PSRAM master IP is designed so that a user design may immediately access memory from the xSPI device in SPI mode, or alternatively issue a command to switch to any other mode. Additionally, a DMA command may be issued to copy memory to or from the xSPI device and anywhere else on the system bus.
查看 xSPI - PSRAM Master 详细介绍：
- 查看 xSPI - PSRAM Master 完整数据手册
- 联系 xSPI - PSRAM Master 供应商

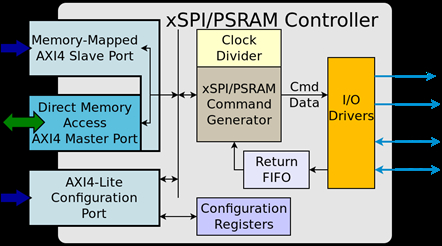

Block Diagram of the xSPI - PSRAM Master
Video Demo of the xSPI - PSRAM Master
Arasan Chip Systems, a leading provider of IP for Mobile Storage Standards, presents its JEDEC JESD251C Compliant xSPI IP, a superset of its Octal SPI IP, QSPI IP and PSRAM IP in addition to xSPI providing access to any NOR Flash Device. Arasan's Total xSPI IP, which includes the xSPI PHY IP combines ease of use with high reliability, low power and speed under all conditions, including automotive applications.
