VESA DisplayPort 2.0 FEC RX
The DisplayPort Forward Error Correction (FEC) Receiver IP Core implements Reed-Solomon FEC and symbol interleaving as specified by the VESA DisplayPort 2.0 specification. Forward Error Correction is required to ensure low bit error rate at UHBR link rates and glitch-free Display Stream Compression (DSC) bitstream transport.
查看 VESA DisplayPort 2.0 FEC RX 详细介绍：
- 查看 VESA DisplayPort 2.0 FEC RX 完整数据手册
- 联系 VESA DisplayPort 2.0 FEC RX 供应商

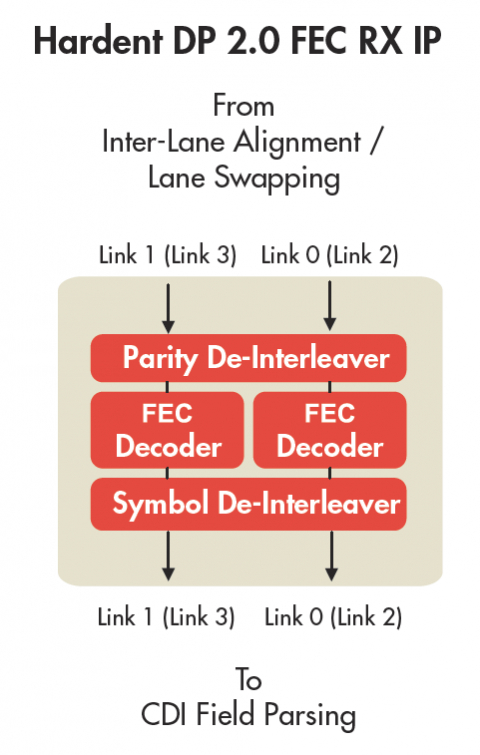

Block Diagram of the VESA DisplayPort 2.0 FEC RX
