V-by-One 1.4 Transmitter
特色
- Compliant with V-by-One 1.4 specification
- Support for up to 8 channels, with up to 4 Gbps data rate per channel
- Supports up to 40-bit Deep-Color in RGB/YCbCCr/RGBW/RGB/Y format Digital Video Output with selectable edge clocking
- Supports scrambling and 8b/10b encoding
- Process: SMIC 40 nm LL 1P7M 1T
- Temperature Range: -40 – 125°C
- Power Consumption:
- Analog: 115 mA, 3.3 V + 60 mA, 1.1 volt
- Digital: 40 mA, 1.1 V
- In Power Down Mode: 10 μA total
查看 V-by-One 1.4 Transmitter 详细介绍：
- 查看 V-by-One 1.4 Transmitter 完整数据手册
- 联系 V-by-One 1.4 Transmitter 供应商

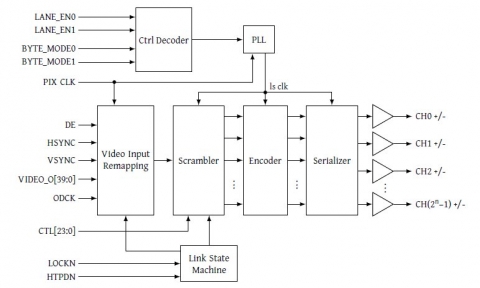

Block Diagram of the V-by-One 1.4 Transmitter
