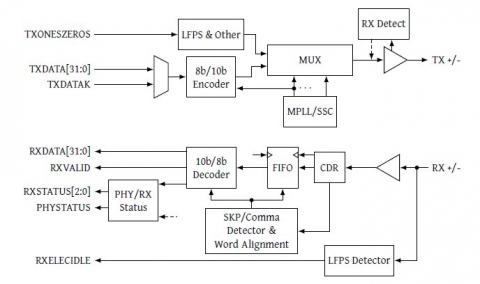

USB 3.0 PHY

特色

Standard PHY interface (PIPE) enables multiple IP sources for USB 3.0 Link Layer
Supports 5.0 GT=s serial data transmission rate
Supports 16- or 32-bit parallel interface
Supports PCLK as PHY output
Data and clock recovery from serial stream
8b/10b encoder/decoder and error indication
Receiver detection
Low Frequency Period Signalling (LFPS) transmission and reception
Supports transmitting LFPS when power state changes
Selectable TX margining
Compliant with USB 3.0 specification
TSMC 28/TSMC 40/SMIC 40/SMIC 0.13 nm processes
