Time aligned Signal Generator core
The Signal Generator from NetTimeLogic is a clock aligned pulse and pattern (PWM) generator with nanosecond resolution (second and nanosecond format). It uses NetTimeLogic's Adjustable Clock core as source for time driven signal generation.
It allows single, multi (configurable) and continuous pulse generation with configurable polarity, start time, interval and duty cycle.
The IP core comes with a Linux Driver
It allows single, multi (configurable) and continuous pulse generation with configurable polarity, start time, interval and duty cycle.
The IP core comes with a Linux Driver
查看 Time aligned Signal Generator core 详细介绍：
- 查看 Time aligned Signal Generator core 完整数据手册
- 联系 Time aligned Signal Generator core 供应商

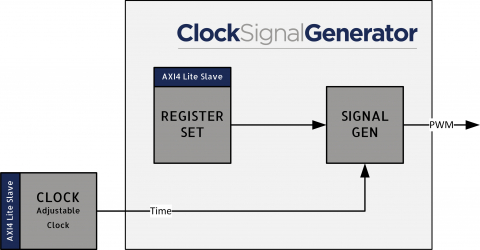

Block Diagram of the Time aligned Signal Generator core
