CAN FD Bus Controller
The Controller Area Network (CAN) controller IP that implements the CAN2.0A, CAN2.0B as well as newer high performance Non ISO CAN-FD protocols. It can be integrated into devices that require CAN connectivity commonly used in automotive and industrial applications.
特色
- Implements CAN2.0A and CAN2.0B protocol, ISO 11898-1 compliant
- Supports CAN-FD
- Non-ISO CAN FD – Compliant to Bosch Protocol
- Independent System Clock(SYSCLK) and CAN Bus Clock(CANCLK)
- SYSCLK is CPU interface Bus Clock, – AHB Clock in case of ARM
- CANCLK can either be independent or tied to SYSCLK
- Flexible shared buffering scheme that implements optimal buffer size for Transmit and Receive messages
- Total buffer size is parameterized – synthesis time option
- Buffer can be implemented as a single port SRAM or flops
- Transmit buffer, receiver buffer and high-priority transmit buffer
- CPU configurable depths for transmit, receive and high-priority transmit buffers
- Parameterized number of Acceptance Filters – 1-16
- AHB-Lite Slave Interface for connecting to CPU
- Optional APB Interface
- Supports 32-bit interface
- Programmable Baud Rate Prescalar (BRP)
- Generate Time Quantum Clock from CANCLK
- 8-bit BRP register to have div-by-2 up to div-by-255
优势
- CAN2.0A, CAN2.0B and non ISO protocols
- Small footprint
- Code validated with Spyglass
- Functionality ensured with comprehensive verification
- Premier direct support from Arasan IP core designers
可交付内容
- Verilog HDL of the IP Core
- User guide
- Gate count estimates available upon request
- Synthesis scripts
- Simulation environment including test bench, BFM’s, and exhaustive test suite
应用
- Automotive Networks for ECUs requiring >1Mbps
- Industrial and Medical networks

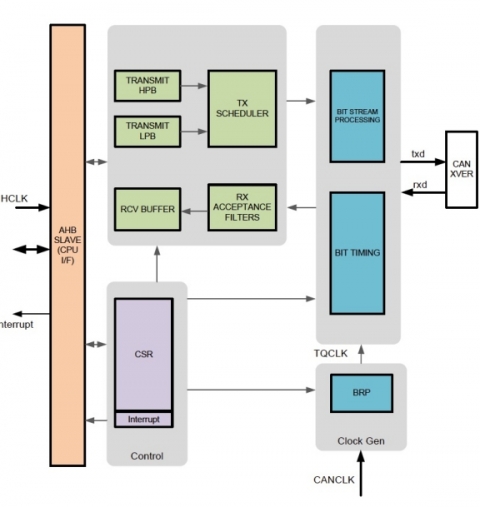

Block Diagram of the CAN FD Bus Controller
