SPDT Analog Switch
The TI-RF-Switch is a broad-band dual SPDT analog switch containing two single-pole double-throw switches. Used CMOS XH035 technology provides high isolation and low insertion loss at frequencies up to 1 GHz. The analog switch includes an integrated control logic scheme, which eliminates the necessity of applying of external control circuitry. Logic control inputs of the device are compatible with CMOS and LVTTL logic levels.
查看 SPDT Analog Switch 详细介绍：
- 查看 SPDT Analog Switch 完整数据手册
- 联系 SPDT Analog Switch 供应商

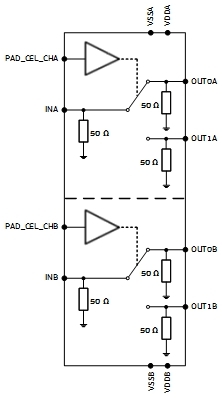

Block Diagram of the SPDT Analog Switch
