Silicon RC Oscillator 20-90MHz for Silterra CL180G
The DSCORE0401H-SL180G is a Silicon RC Oscillator with frequency output from 20MHz to 90MHz within the range of +/-4.3% with trimming or +/-8% without trimming. No external components are required. The oscillator operates in a voltage range of 3.3V +10%/ 20% and is qualified over a broad temperature range from 0°C to +85°C.
The oscillator has excellent nominal duty cycle specifications (50% +/- 2%). DSCORE0401H-SL180G has good power supply rejection rate, low quiescent current, low temperature coefficient.
DSCORE0401H-SL180G is silicon-proven in 0.18um CMOS generic process, has small area and low power consumption, and easy to be integrated in SoC with complete set of documentation and database included.
The oscillator has excellent nominal duty cycle specifications (50% +/- 2%). DSCORE0401H-SL180G has good power supply rejection rate, low quiescent current, low temperature coefficient.
DSCORE0401H-SL180G is silicon-proven in 0.18um CMOS generic process, has small area and low power consumption, and easy to be integrated in SoC with complete set of documentation and database included.
查看 Silicon RC Oscillator 20-90MHz for Silterra CL180G 详细介绍：
- 查看 Silicon RC Oscillator 20-90MHz for Silterra CL180G 完整数据手册
- 联系 Silicon RC Oscillator 20-90MHz for Silterra CL180G 供应商

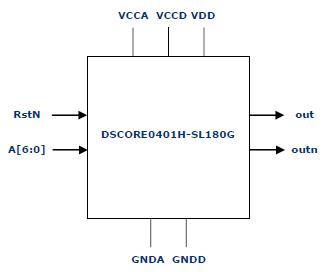

Block Diagram of the Silicon RC Oscillator 20-90MHz for Silterra CL180G
