Retention Alternative Regulator, combines high efficiency in normal mode and ultra-low quiescent current for sleep mode
The RAR-eSR-qLR Retention Alternating Regulator combines two regulation sub-components: a high-efficiency switching regulator (eSR) and an ultra low quiescent linear regulator (qLR). A Regulation Control Unit (RCU) manages booting and transitions between each regulation functions.
查看 Retention Alternative Regulator, combines high efficiency in normal mode and ultra-low quiescent current for sleep mode 详细介绍：
- 查看 Retention Alternative Regulator, combines high efficiency in normal mode and ultra-low quiescent current for sleep mode 完整数据手册
- 联系 Retention Alternative Regulator, combines high efficiency in normal mode and ultra-low quiescent current for sleep mode 供应商

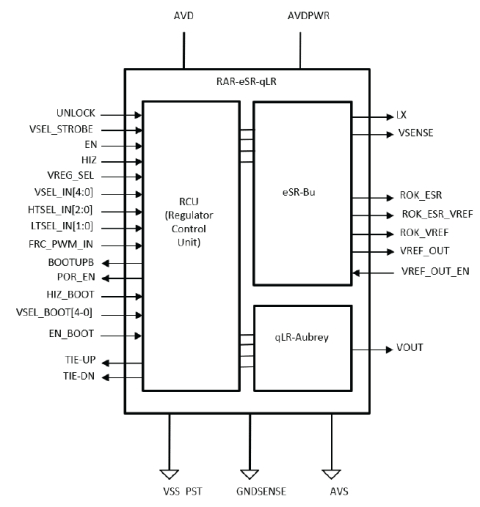

Block Diagram of the Retention Alternative Regulator, combines high efficiency in normal mode and ultra-low quiescent current for sleep mode
