PCI Express to VME64x Transparent Bridge

特色

• Complete PCI Express to VME64x Master/Slave Bridge
• Improved performance compared to currently available ASIC solutions
• PCI Express x4 GEN1/2
• VME64x supported modes: SLT, BLT, MBLT, 2eVME and 2eSST
• Built-in DDR2 Shared Memory Controller
• High-performance DMA > 800 MByte/s
• Embedded 4-channels chained DMA Controller
• VHDL source code supplied for long term obsolescense management
• Target FPGAs: Xilinx Virtex-5T and Virtex-6T

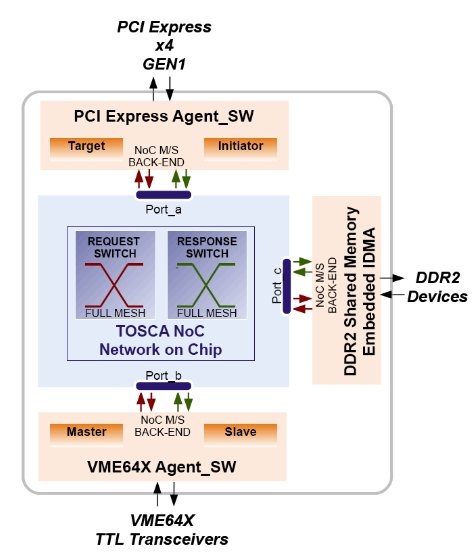

Block Diagram of the PCI Express to VME64x Transparent Bridge
