PCI Express 4.0 PHY
The PCIe IP boasts a low power consumption and compact silicon footprint. Its robust PHY architecture tolerates process, voltage, and temperature (PVT) variations. This IP integrates high-speed mixed-signal circuits to support PCIe 4.0 traffic at 16Gbps. It is backward compatible with PCIe 3.1 data rates at 8.0Gbps, PCIe 2.1 at 5.0Gbps, and PCIe 1.1 at 2.5Gbps. The multi-tab transceiver design, accompanied by a robust BIST, an embedded bit error rate (BER) tester, and an internal eye monitor, enables designers to control, test, and monitor signal integrity without the need for expensive test equipment.
查看 PCI Express 4.0 PHY 详细介绍:
- 查看 PCI Express 4.0 PHY 完整数据手册
- 联系 PCI Express 4.0 PHY 供应商

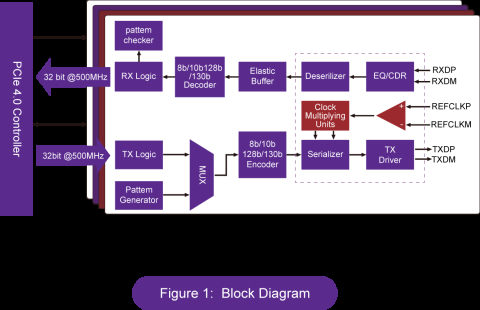

Block Diagram of the PCI Express 4.0 PHY
