Motion JPEG Over IP - HD Video Encoder Subsystem
This Video Over IP Subsystem employs JPEG compression and RTP/UDP/IP encapsulation to enable the rapid development of complete motion JPEG video streaming products. Hardware reference designs and customization services complete the solution.
The subsystem uses CAST’s JPEG-E-S, JPEG2RTP, and UDPIP IP cores. Flexible interfaces allow easy integration of video and network controllers; the cores’ AMBA® AXI4-Lite™ slave interfaces allow a host processor to access all control and status registers. An optional custom logic module allows standalone, processor-free operation and provides access to control and status registers via UDP packets. Video and stream data are transferred among the subsystem’s modules using AXI-Stream, making removing or adding modules straightforward.
The produced stream can be decoded using Motion JPEG-compatible software viewers (e.g. VLC).
Applications
The subsystem uses CAST’s JPEG-E-S, JPEG2RTP, and UDPIP IP cores. Flexible interfaces allow easy integration of video and network controllers; the cores’ AMBA® AXI4-Lite™ slave interfaces allow a host processor to access all control and status registers. An optional custom logic module allows standalone, processor-free operation and provides access to control and status registers via UDP packets. Video and stream data are transferred among the subsystem’s modules using AXI-Stream, making removing or adding modules straightforward.
The produced stream can be decoded using Motion JPEG-compatible software viewers (e.g. VLC).
Applications
查看 Motion JPEG Over IP - HD Video Encoder Subsystem 详细介绍：
- 查看 Motion JPEG Over IP - HD Video Encoder Subsystem 完整数据手册
- 联系 Motion JPEG Over IP - HD Video Encoder Subsystem 供应商

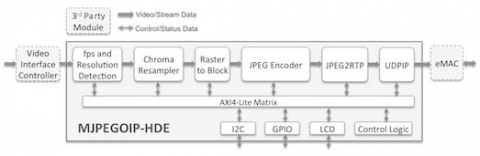

Block Diagram of the Motion JPEG Over IP - HD Video Encoder Subsystem
