MIPI D-PHY Transmitter IP Core
The MIPI D-PHY Transmitter IP Core is compliant with the MIPI Alliance Standard for D-PHY. The MIPI D-PHY Transmitter is configured as a MIPI master and consists of 4 lanes: 1 Clock lane and 3 data lanes, which makes it suitable for display interface applications (DSI). The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed Data traffic while low power functions are mostly used for control.
查看 MIPI D-PHY DSI TX (Transmitter) IP 详细介绍：
- 查看 MIPI D-PHY DSI TX (Transmitter) IP 完整数据手册
- 联系 MIPI D-PHY DSI TX (Transmitter) IP 供应商

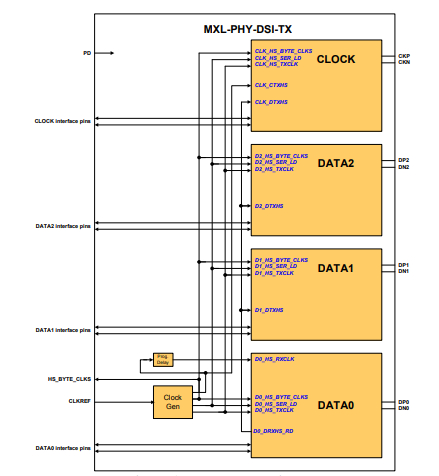

Block Diagram of the MIPI D-PHY DSI TX (Transmitter) IP
MIPI D-PHY Transmitter IP
