MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+
The MXL-DPHY-CSI-2-TX-T-28HPC+ is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5.
The PHY can be configured as a MIPI Master supporting camera interface CSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications.
The PHY can be configured as a MIPI Master supporting camera interface CSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications.
查看 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+ 详细介绍：
- 查看 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+ 完整数据手册
- 联系 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+ 供应商

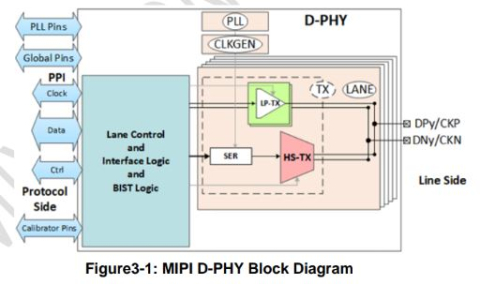

Block Diagram of the MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+
