MIPI C-PHY/D-PHY Combo 2-Lane CSI-2 TX+ IP in TSMC 40ULP
The MXL-CDPHY-2L-CSI-2-TX+-40ULP is a high-frequency, low-power, low-cost, sourcesynchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5 and C-PHY v2.0. The PHY can be configured as a MIPI Master supporting camera interface CSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications.
The CSI-2 TX+ is a Mixel proprietary configuration that is optimized to support full-speed production and in-system testing while minimizing area and leakage power.
The CSI-2 TX+ is a Mixel proprietary configuration that is optimized to support full-speed production and in-system testing while minimizing area and leakage power.
查看 MIPI C-PHY/D-PHY Combo 2-Lane CSI-2 TX+ IP in TSMC 40ULP 详细介绍:
- 查看 MIPI C-PHY/D-PHY Combo 2-Lane CSI-2 TX+ IP in TSMC 40ULP 完整数据手册
- 联系 MIPI C-PHY/D-PHY Combo 2-Lane CSI-2 TX+ IP in TSMC 40ULP 供应商

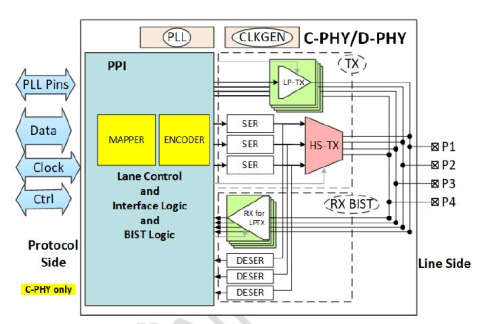

Block Diagram of the MIPI C-PHY/D-PHY Combo 2-Lane CSI-2 TX+ IP in TSMC 40ULP
