MIPI C/D COMBO RX HS PHY UMC 28/22nm
Our silicon-proven MIPI C- and D-PHY combo Rx PHY is compliant with Camera Serial Interface (CSI) version 1.2, supporting D-PHY speeds up to 4.5 GHz (bandwidth of 4.5 Gbps) and C-PHY symbol rates ranging from 0.8 to 3.5 Gsps. The bandwidth of the C-PHY operating at 3.5 Gsps is 7.98 Gbps, with a 1:2.28 compression ratio. This combo IP is designed for extremely low power consumption and seamless integration into any System-on-Chip (SoC).
Optimized for high performance, low power, and a compact footprint, the InPsytech Camera Interface Rx combo PHY is available in configurations of one to four lanes and can be customized into various combinations of D-PHY and/or C-PHY receivers. This IP is provided as a hard macro PHY, typically delivered in GDSII format.
For further information, please contact an InPsytech sales representative at sales@inpsytech.com.
Optimized for high performance, low power, and a compact footprint, the InPsytech Camera Interface Rx combo PHY is available in configurations of one to four lanes and can be customized into various combinations of D-PHY and/or C-PHY receivers. This IP is provided as a hard macro PHY, typically delivered in GDSII format.
For further information, please contact an InPsytech sales representative at sales@inpsytech.com.
查看 MIPI C/D COMBO RX HS PHY UMC 28/22nm 详细介绍：
- 查看 MIPI C/D COMBO RX HS PHY UMC 28/22nm 完整数据手册
- 联系 MIPI C/D COMBO RX HS PHY UMC 28/22nm 供应商

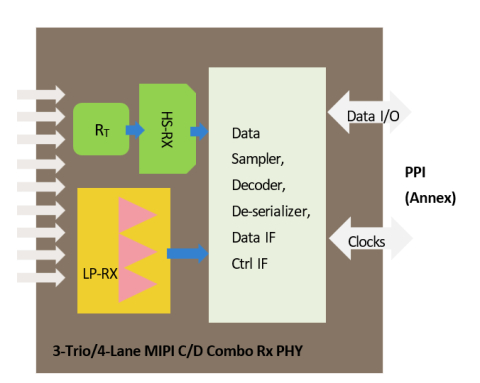

Block Diagram of the MIPI C/D COMBO RX HS PHY UMC 28/22nm
