Low Power BTDM5.3 Connectivity Transceiver

特色

• Compliant to Bluetooth core specification 5
• Supports Bluetooth basic rate (BR), enhanced data rate (EDR) and low energy (LE)
• Low power consumption
• Low-cost BOM
• Excellent blocking performance, exceeding standards requirements
• Single-pin, single-ended RF interface
• Simple matching to 50 0 using a single capacitor Efficient PA delivering up to +8 dBm (Bluetooth EDR) Reference crystal oscillator (12 MHz - 48 MHz) with integrated tunable load capacitors
• LPO RC oscillator (32.768 kHz) for sleep clock
• Small area 0.81mm2)

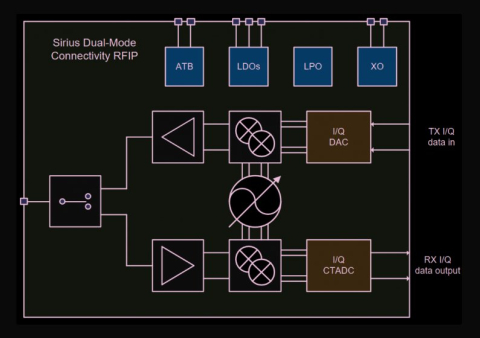

Block Diagram of the Low Power BTDM5.3 Connectivity Transceiver
