Intra-Panel Multi Strandard Low-Power TX PHY (28nm)
The Intra-Panel TX PHY is a COG and COF transmitter supporting up to 3.2Gbps data rate with low power consumption. It features a DC-coupled differential pair and a push-pull current mode driver delivering 600mV swing and 6dB pre-emphasis.
查看 Intra-Panel Multi Strandard Low-Power TX PHY (28nm) 详细介绍：
- 查看 Intra-Panel Multi Strandard Low-Power TX PHY (28nm) 完整数据手册
- 联系 Intra-Panel Multi Strandard Low-Power TX PHY (28nm) 供应商

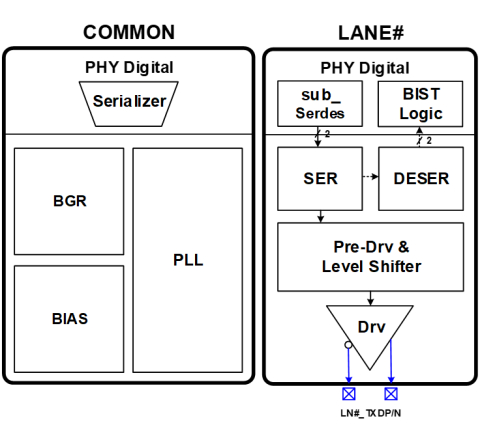

Block Diagram of the Intra-Panel Multi Strandard Low-Power TX PHY (28nm)
