I2C Slave with AXI Master Bridge (I2C2AXI4)
The DB-I2C-S-AXI-BRIDGE is an I2C Slave Controller IP Core focused on low VLSI footprint ASIC / ASSP designs not requiring internal configuration & control registers (and thus no local host CPU required). The DB-I2C-S-AXI-BRIDGE processes the I2C protocol & physical layers, and receives & transmits bytes with respect to the I2C payload via a bridge AXI Master Interface to user registers or memory.
The DB-I2C-S-AXI-BRIDGE runs off the AXI Master external clock input within the ASIC / ASSP, providing a synchronous design while offering I2C spike filtering of SDA and SCL.
The DB-I2C-S-AXI-BRIDGE runs off the AXI Master external clock input within the ASIC / ASSP, providing a synchronous design while offering I2C spike filtering of SDA and SCL.
查看 I2C Slave with AXI Master Bridge (I2C2AXI4) 详细介绍：
- 查看 I2C Slave with AXI Master Bridge (I2C2AXI4) 完整数据手册
- 联系 I2C Slave with AXI Master Bridge (I2C2AXI4) 供应商

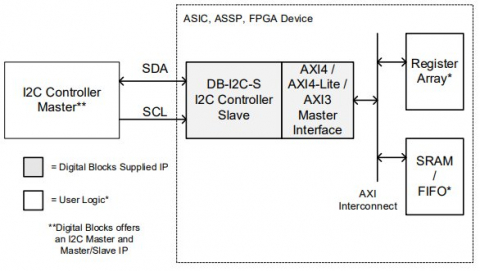

Block Diagram of the I2C Slave with AXI Master Bridge (I2C2AXI4)
