MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP
The MXL-CPHY-DPHY-UNIV is a high-frequency low-power, low-cost, source-synchronous, physical Layer. The PHY can be configured as a MIPI Master or MIPI Slave supporting camera interface CSI-2 v1.2 and display interface DSI v1.3 applications in the D-PHY mode. It also supports camera interface CSI-2 v1.3 and display interface DSI-C v1.0 applications in the C-PHY mode. The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
查看 MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP 详细介绍:
- 查看 MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP 完整数据手册
- 联系 MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP 供应商

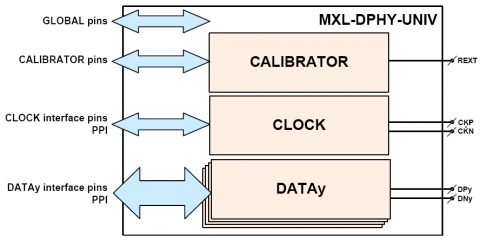

Block Diagram of the MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP
