High-Speed LVDS (SERDES) Transceiver
High-speed LVDS (SERDES) transceiver with up to 8 serial data lanes, generic data width and integrated asynchronous FIFO. Ideal for standard LVDS links such as Channel-link®, Camera-link®, FPD-link®, FlatLink®, MIPI etc.
Capable of data rates of up to 500 MBits/s per lane on basic FPGA devices and 1 Gbits/s+ on higher-end FPGAs.
Capable of data rates of up to 500 MBits/s per lane on basic FPGA devices and 1 Gbits/s+ on higher-end FPGAs.
查看 High-Speed LVDS (SERDES) Transceiver 详细介绍：
- 查看 High-Speed LVDS (SERDES) Transceiver 完整数据手册
- 联系 High-Speed LVDS (SERDES) Transceiver 供应商

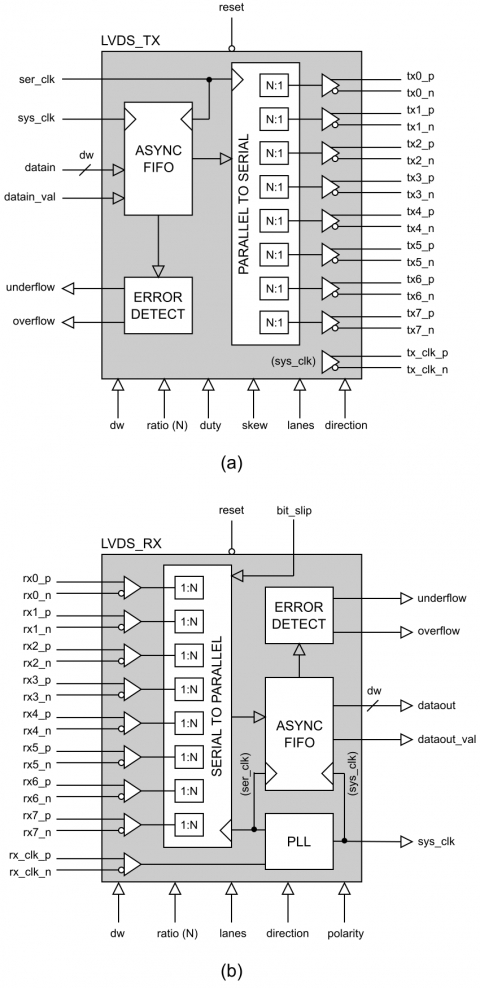

Block Diagram of the High-Speed LVDS (SERDES) Transceiver
