Fractional N-PLL

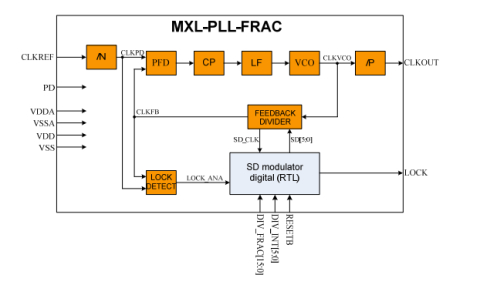

The MXL-PLL-FRAC is a high performance Fractional-N PLL implemented using a digital CMOS technology. It is highly integrated and requires no external components. Differential circuit techniques are employed to attain low jitter in the noisy environment typical of multi-million gates digital chip.
特色
- High performance Fractional-N PLL
- Digital CMOS process
- Low power dissipation
- No external components required
- Low jitter output
- 50% Duty Cycle Output divider
- Integer Mode
- Power-down Mode
可交付内容
- Data sheet
- GDSII
- LVS Netlist
- Integration Guidelines
- Timing Model
- Behavioral Model
- LEF File for P&R
查看 Fractional N-PLL 详细介绍：
- 查看 Fractional N-PLL 完整数据手册
- 联系 Fractional N-PLL 供应商
