eDP v1.5a RX PHY (14nm)
The eDP RX PHY supports a maximum data rate of up to HBR3 (8.1Gbps), and the general mode supports a maximum data rate of up to 4Gbps. This core IP is commonly used for connecting a multi-protocol interface to a host processor.
查看 eDP v1.5a RX PHY (14nm) 详细介绍：
- 查看 eDP v1.5a RX PHY (14nm) 完整数据手册
- 联系 eDP v1.5a RX PHY (14nm) 供应商

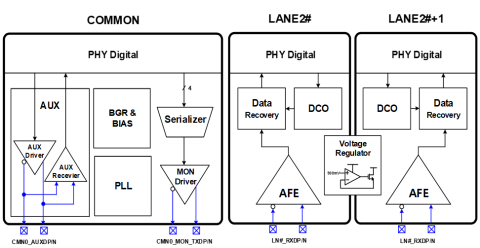

Block Diagram of the eDP v1.5a RX PHY (14nm)
