Driver Amplifier operating from 37 - 40 GHz and can be used in Ka band applications or to drive the high-power amplifier.
RFDA11C Driver Amplifier operates from 37 - 40 GHz and can be used in Ka band applications or to drive the high-power amplifier. The amplifier provides 15 dB small signal gain and 22 dBm of Output P1dB. The input and output are matched to 50 ohms with on-chip DC blocking capacitors. The device is specifically designed to use in point-to-point radios, cellular backhaul application, 5G RF Transceiver & SATCOM. The technology used to design DA is 0.1um GaAs pHEMT Process. Results are shown in datasheet with all parasitics & coupling effects at desired frequency.
查看 Driver Amplifier operating from 37 - 40 GHz and can be used in Ka band applications or to drive the high-power amplifier. 详细介绍：
- 查看 Driver Amplifier operating from 37 - 40 GHz and can be used in Ka band applications or to drive the high-power amplifier. 完整数据手册
- 联系 Driver Amplifier operating from 37 - 40 GHz and can be used in Ka band applications or to drive the high-power amplifier. 供应商

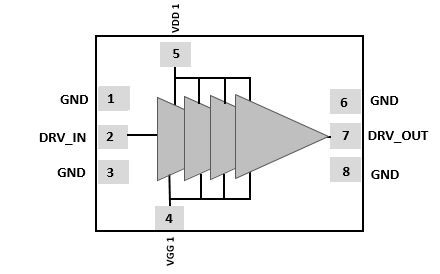

Block Diagram of the Driver Amplifier operating from 37 - 40 GHz and can be used in Ka band applications or to drive the high-power amplifier.
