Driver Amplifier operating from 35 - 46 GHz and can be used in Ka / V band applications or to drive the high-power amplifier
RFDA12C Driver Amplifier operates from 35 - 46 GHz and can be used in Ka / V band applications or to drive the high-power amplifier. The amplifier provides 26.5 dB small signal gain and 24 dBm of Output P1dB. The input and output are matched to 50 ohms with on-chip DC blocking capacitors. The device is specifically designed to use in point-to-point radios, cellular backhaul application, 5G RF Transceiver & SATCOM. The technology used to design DA is 0.1um GaAs pHEMT Process. Results are shown in datasheet with all parasitics & coupling effects at desired frequency.
查看 Driver Amplifier operating from 35 - 46 GHz and can be used in Ka / V band applications or to drive the high-power amplifier 详细介绍：
- 查看 Driver Amplifier operating from 35 - 46 GHz and can be used in Ka / V band applications or to drive the high-power amplifier 完整数据手册
- 联系 Driver Amplifier operating from 35 - 46 GHz and can be used in Ka / V band applications or to drive the high-power amplifier 供应商

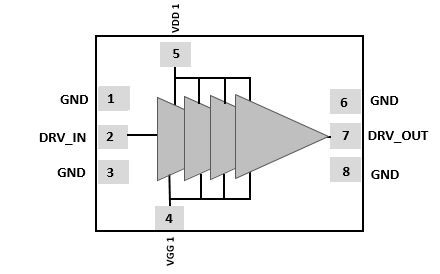

Block Diagram of the Driver Amplifier operating from 35 - 46 GHz and can be used in Ka / V band applications or to drive the high-power amplifier
