DisplayPort 1.2 Transmitter
特色
- Compliant with DisplayPort Standard 1.2
- Main Link supports 1, 2 or 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps
- Supports Deep Color up to 48bpp
查看 DisplayPort 1.2 Transmitter 详细介绍：
- 查看 DisplayPort 1.2 Transmitter 完整数据手册
- 联系 DisplayPort 1.2 Transmitter 供应商

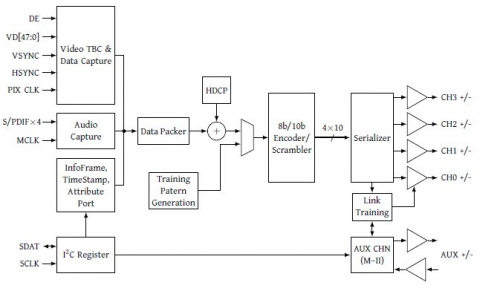

Block Diagram of the DisplayPort 1.2 Transmitter
