DisplayPort 1.2 Receiver

特色

• Compliant with DisplayPort Standard 1.2
• Main Link supports 1, 2 or 4 lanes at 1.62Gbps, 2.7Gbps and 5.4Gbps
• Enhanced Framing Mode support
• Integrated High-bandwidth Digital Content Protection (HDCP) version 1.4
• Integrated Audio Clock Regeneration
• Deep-Color mode support up to 48-bit RGB/YCbCr Digital Video Output with selectable edge clocking
• Power-down modes
• 2.5V I/O
• Panasonic 65 nm process

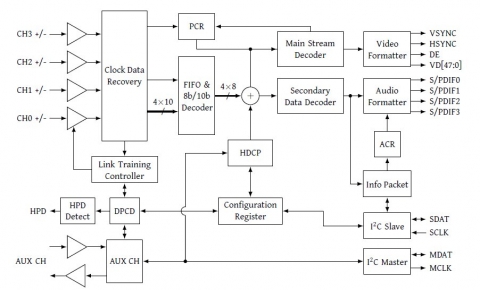

Block Diagram of the DisplayPort 1.2 Receiver
