Bandgap Voltage / Current Reference UMC
The agileBandGapGP consists of a bandgap reference core together with a bandgap reference voltage generator (VREF), VREF replica current generators and bias current generators. The number of output bias currents can be specified up to a maximum of 16 configurable outputs. Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable, leading to analog IP that is more verifiable, more robust and more reliable.
查看 Bandgap Voltage / Current Reference UMC 详细介绍：
- 查看 Bandgap Voltage / Current Reference UMC 完整数据手册
- 联系 Bandgap Voltage / Current Reference UMC 供应商

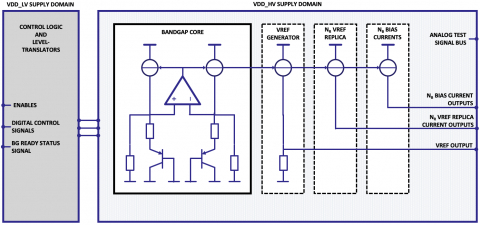

Block Diagram of the Bandgap Voltage / Current Reference UMC
