AXI to APB Bus Bridge
The AXI to APB Bridge translates an AXI bus transaction (read or write) to an APB bus transaction. This is accomplished via two state machines – one governing the AXI transactions, and one governing APB transactions.
The AXI to APB Bridge acts as an AXI Slave, and an APB Master in an AXI/APB subsystem. Typically, the AXI to APB Bridge has its AXI interface connected to a Slave port on an AXI Channel/Interconnect module, and its APB interface connected to the Master port on an APB Channel module.
The AXI to APB Bridge acts as an AXI Slave, and an APB Master in an AXI/APB subsystem. Typically, the AXI to APB Bridge has its AXI interface connected to a Slave port on an AXI Channel/Interconnect module, and its APB interface connected to the Master port on an APB Channel module.
查看 AXI to APB Bus Bridge 详细介绍：
- 查看 AXI to APB Bus Bridge 完整数据手册
- 联系 AXI to APB Bus Bridge 供应商

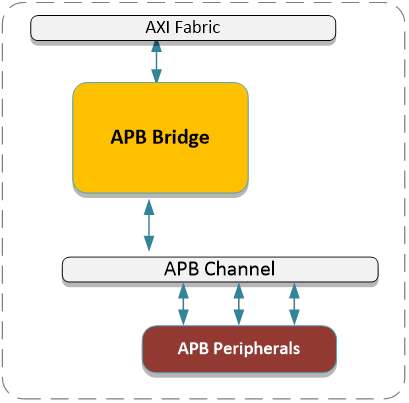

Block Diagram of the AXI to APB Bus Bridge
