Accurate BandGap Voltage Current Reference Generator
CT20308 is a buffered accurate reference voltage generator, including a low pass filter with an external capacitor for noise reduction and PSRR improvement. In order to achieve a total error <1%, the amplifier in the bandgap core block implements an offset cancellation circuitry.
Reference voltage thermal drift is minimized by means of 7 bits trimming so that the voltage reaches the “golden point”.
Additional 6 bits are used to flatten the output thermal characteristic while performing trimming at one single temperature.
CT20308 includes reference currents generators, both using an external accurate resistor and a completely internal one tied to poly resistor values.
CT20308 also includes an over temperature detection circuit and Power On Reset.
Reference voltage thermal drift is minimized by means of 7 bits trimming so that the voltage reaches the “golden point”.
Additional 6 bits are used to flatten the output thermal characteristic while performing trimming at one single temperature.
CT20308 includes reference currents generators, both using an external accurate resistor and a completely internal one tied to poly resistor values.
CT20308 also includes an over temperature detection circuit and Power On Reset.
查看 Accurate BandGap Voltage Current Reference Generator 详细介绍：
- 查看 Accurate BandGap Voltage Current Reference Generator 完整数据手册
- 联系 Accurate BandGap Voltage Current Reference Generator 供应商

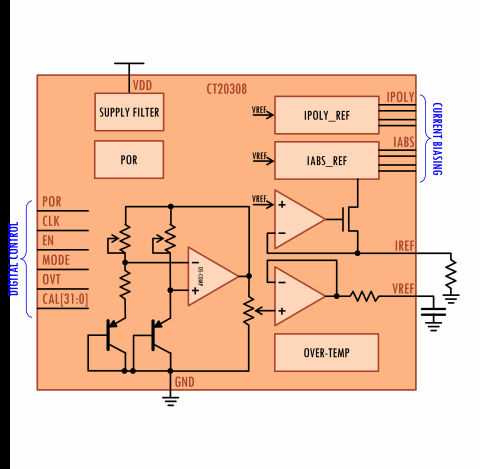

Block Diagram of the Accurate BandGap Voltage Current Reference Generator
