800MHz Low Jitter PLL
The ll_pll2661s01_ln28lpp_7000 is a 1.8V/1.0V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 9-bit main-divider, and an automatic frequency control (AFC).
查看 800MHz Low Jitter PLL 详细介绍：
- 查看 800MHz Low Jitter PLL 完整数据手册
- 联系 800MHz Low Jitter PLL 供应商

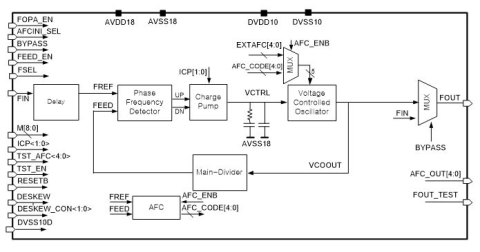

Block Diagram of the 800MHz Low Jitter PLL
