32-bit, 33 MHz Multifunction Target Interface
The PCI-T32MF implements a target-only PCI interface compliant with the PCI 2.3 specification. It supports a 32-bit address/data bus and operates up to 33 MHz (PCI clock).
The core offers one to eight independent PCI functions in a single chip, each implementing 64 to 256 bytes of PCI Configuration Space registers as required. Each function supports up to six Base Address Registers, with both I/O and Memory space decoding from 16 bytes up to 4GB.
The core was developed for easy reuse with ASICs or FPGAs.
The core offers one to eight independent PCI functions in a single chip, each implementing 64 to 256 bytes of PCI Configuration Space registers as required. Each function supports up to six Base Address Registers, with both I/O and Memory space decoding from 16 bytes up to 4GB.
The core was developed for easy reuse with ASICs or FPGAs.
查看 32-bit, 33 MHz Multifunction Target Interface 详细介绍：
- 查看 32-bit, 33 MHz Multifunction Target Interface 完整数据手册
- 联系 32-bit, 33 MHz Multifunction Target Interface 供应商

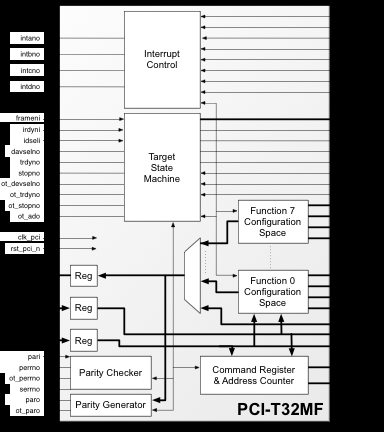

Block Diagram of the 32-bit, 33 MHz Multifunction Target Interface
