3.5GHz to 7GHz Low Noise Fractional-N Phase-Locked Loop
055TSMC_PLL_02 is a PLL frequency synthesizer that generates a high-frequency signal in the range from 3.5GHz to 7GHz. The synthesizer consists of 4 voltage-controlled oscillators (VCO) with internal LC circuit and automatic subband selection system; a digital phase-frequency detector (PFD); a precision charge pump (CP) with integrated adjustable loop filter; a programmable divider of reference signal and a system of programmable feedback dividers controlled by a delta-sigma modulator (DSM)
查看 3.5GHz to 7GHz Low Noise Fractional-N Phase-Locked Loop 详细介绍:
- 查看 3.5GHz to 7GHz Low Noise Fractional-N Phase-Locked Loop 完整数据手册
- 联系 3.5GHz to 7GHz Low Noise Fractional-N Phase-Locked Loop 供应商

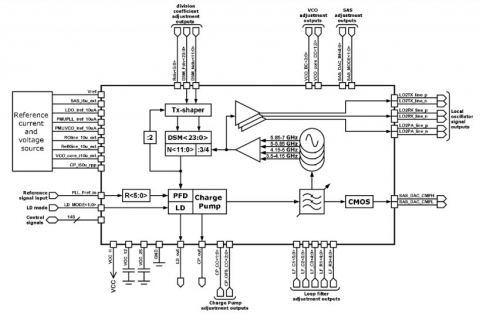

Block Diagram of the 3.5GHz to 7GHz Low Noise Fractional-N Phase-Locked Loop
