1G Unmanaged Ethernet Switch
Unmanaged Ethernet Switch IP core (UES) implements a plug-and-play Ethernet switch on reconfi gurable devices. It does not require external confi guration. It has been designed to address the maximum throughput using the minimum resources.
The switch implements a non-blocking crossbar matrix that allows wire-speed communication among all the ports. The switch buffers and verifi es each frame before forwarding it. Nevertheless, the latency time has been minimized to nanoseconds order. Furthermore, UES supports IEEE 1588 V2 Transparent Clock functionalities. This feature, that corrects PTP frames introducing the error generated by the switch, allows the interconnection of IEEE 1588 synchronized devices maintaining the highest levels of accuracy.
UES is the perfect Ethernet Switch IP to implement Ethernet based Industrial Networks. It provides MII/GMII/RGMII native interfaces for Ethernet PHY devices and it can be combined with Xilinx IP to support RMII or SGMII among other interfaces. It also supports and AXI4-Stream interface to be connected to other IP Cores that do not feature MAC based interfaces.
The switch implements a non-blocking crossbar matrix that allows wire-speed communication among all the ports. The switch buffers and verifi es each frame before forwarding it. Nevertheless, the latency time has been minimized to nanoseconds order. Furthermore, UES supports IEEE 1588 V2 Transparent Clock functionalities. This feature, that corrects PTP frames introducing the error generated by the switch, allows the interconnection of IEEE 1588 synchronized devices maintaining the highest levels of accuracy.
UES is the perfect Ethernet Switch IP to implement Ethernet based Industrial Networks. It provides MII/GMII/RGMII native interfaces for Ethernet PHY devices and it can be combined with Xilinx IP to support RMII or SGMII among other interfaces. It also supports and AXI4-Stream interface to be connected to other IP Cores that do not feature MAC based interfaces.
查看 1G Unmanaged Ethernet Switch 详细介绍：
- 查看 1G Unmanaged Ethernet Switch 完整数据手册
- 联系 1G Unmanaged Ethernet Switch 供应商

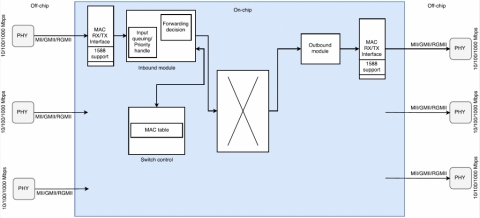

Block Diagram of the 1G Unmanaged Ethernet Switch
