15.5nA Current Bias with Enable - Ultra Low Voltage (0.9V), Ultra Low Power (50nW) Silterra 0.18 μm
This macro-cell is an ultra low power general purpose current bias generator core designed for SilTerra 0.18µm CL180G CMOS technology. The circuit generates 7 × NMOS 15.5nA current branches and 1 × NMOS 7.75nA branch. The current bias is temperature compensated. The core is easily retargeted to any other CMOS technology due to high portability architecture.
查看 15.5nA Current Bias with Enable - Ultra Low Voltage (0.9V), Ultra Low Power (50nW) Silterra 0.18 μm 详细介绍：
- 查看 15.5nA Current Bias with Enable - Ultra Low Voltage (0.9V), Ultra Low Power (50nW) Silterra 0.18 μm 完整数据手册
- 联系 15.5nA Current Bias with Enable - Ultra Low Voltage (0.9V), Ultra Low Power (50nW) Silterra 0.18 μm 供应商

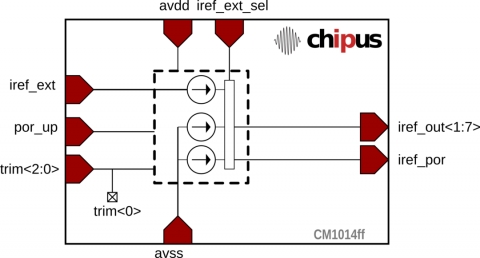

Block Diagram of the 15.5nA Current Bias with Enable - Ultra Low Voltage (0.9V), Ultra Low Power (50nW) Silterra 0.18 μm
