Xtra-Long-Reach (XLR) Multi-Standard-Serdes (MSS)
The ZeusCORE Xtra-Long-Reach (XLR) Multi-Standard-Serdes (MSS) IP is the highest performance SerDes in the Alphawave IP product portfolio. It is a highly configurable IP that supports all leading edge NRZ and PAM data center standards from 1Gbps to 112Gbps, supporting diverse protocols such as PCI-Express Gen1-5 and 1G/10G/25G/50G/100Gbps Ethernet.
What differentiates ZeusCORE is the addition of a Most Likely Sequence Detector (MLSD) that significantly extends the channel reach performance. This extends the system solution space for customers with the most challenging channels.
What differentiates ZeusCORE is the addition of a Most Likely Sequence Detector (MLSD) that significantly extends the channel reach performance. This extends the system solution space for customers with the most challenging channels.
查看 Xtra-Long-Reach (XLR) Multi-Standard-Serdes (MSS) 详细介绍：
- 查看 Xtra-Long-Reach (XLR) Multi-Standard-Serdes (MSS) 完整数据手册
- 联系 Xtra-Long-Reach (XLR) Multi-Standard-Serdes (MSS) 供应商

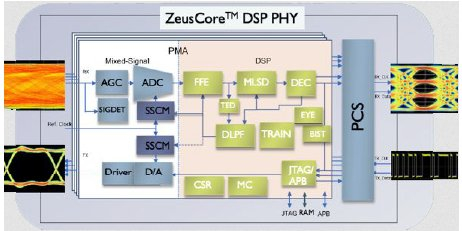

Block Diagram of the Xtra-Long-Reach (XLR) Multi-Standard-Serdes (MSS)
