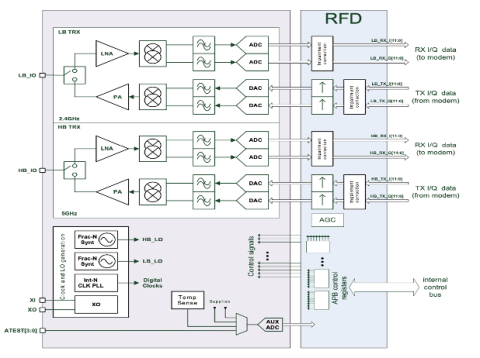

WiFi 6 transceiver IP - 1x1 concurrent dual-band

特色

Dual-band transceiver IP supporting IEEE802.11a/b/g/n/ac/ax
Full concurrent dual band operation
Integrated linear Power Amplifiers
Reduced bias current with reduced output power, allowing optimized bias conditions for different use cases
Integrated receive/transmit switches
Integrated analog channel filters with switchable bandwidth
Easy-to-use calibration routines and simple interface to digital baseband
Fractional-N synthesizers with fine tuning resolution and integrated loop filters
Clock PLL generating clocks for ADCs/DACs and digital baseband
Integrated crystal oscillator for RF reference clock
General-purpose ADC for measurement and calibration
