Video Test Pattern Generator
Pattern generator for video testing and prototyping. Wide range of test patterns in colour, greyscale and monochrome.
Test patterns are configurable, allowing for different width bars, squares and line spacing. Includes animated 'bouncing ball' test pattern to detect movement artifacts.
Test patterns are configurable, allowing for different width bars, squares and line spacing. Includes animated 'bouncing ball' test pattern to detect movement artifacts.
查看 Video Test Pattern Generator 详细介绍:
- 查看 Video Test Pattern Generator 完整数据手册
- 联系 Video Test Pattern Generator 供应商

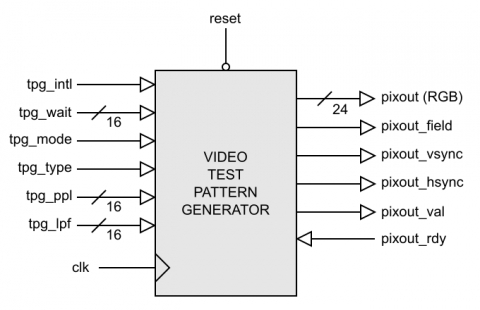

Block Diagram of the Video Test Pattern Generator
![Video Test Pattern Generator Block Diagam](http://www.design-reuse.com/sip/blockdiagram/36188/20150321120312-main-tpg_block_diag.png)
