Video Decoder Interface core accepts BT601/656 video frames (digitized NTSC/PAL) in 10-bit Y'CbCr 4:2:2 format from a video decoder of an analog camera and outputs 16-bit video data in the same format in a continuous stream without blanking and synchronization information.
- Supports BT601 interface
- Supports BT656 interface
- Supports both NTSC & PAL resolution
- Programmable polarity of frame clock & line clock
- Simple design makes it easier to integrate in many FPGA families
- Can be used in video surveillance systems and all kind of video processing systems

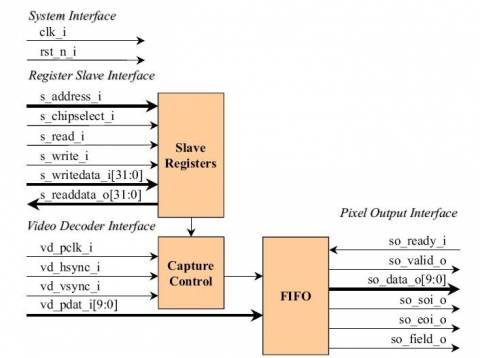

Block Diagram of the Video Decoder Interface
