VESA DSC (Display Stream Compression) 1.2b Video Encoder

特色

• VESA DSC 1.2b compliant
• Supports all DSC 1.2b mandatory encoding mechanisms
• MMAP, BP, MPP, and ICH
• Output buffering compatible with transport stream over video interfaces
• Configurable maximum display resolution
• Up to 4K (4096x2160), 5K (UHD+), and 8K (FUHD)
• 8, 10, 12, 14, and 16 bits per video component
• YCbCr and RGB video input format
• 4:4:4, 4:2:2, and 4:2:0 native coding
• 1 pixel / clock internal processing architecture in 4:4:4
• 2 pixels / clock internal processing architecture in 4:2:2 and 4:2:0
• Parameterizable number of parallel slice encoder instances
• (1, 2, or 4) to adapt to the capability of the technology and target display resolutions used
• Multiple slices per line in each encoder instance supported
• 100% verification coverage based on UVM environment
• Verified against the VESA DSC 1.2b C model using a comprehensive test image library
• Backward compatible with DSC 1.1

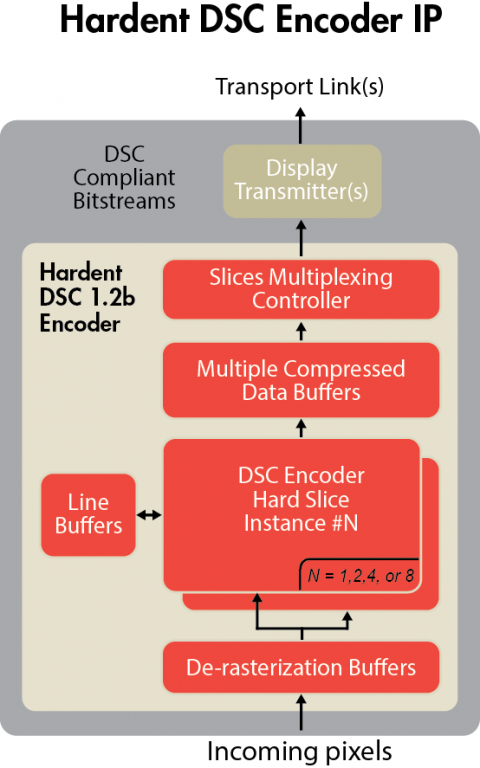

Block Diagram of the VESA DSC (Display Stream Compression) 1.2b Video Encoder
