V-by-One/LVDS Tx IP,在 GF 22FDX 中经过硅验证
V-by-One®HS技术旨在使用内部设备连接以达到高速传输视频信号的效果。在Vby-One®HS标准中列出创建发射器和接收器的要求。这个设计具有8通道和16通道物理层(PHY)用于发送(Tx)和接收(Rx),并且每个通道支持高达4Gbps的速率。这个PHY IP TX LVDS支持高达1.5Gbps的数据速率,配备了20通道(4 x 4D1C)LVDS驱动程序
查看 V-by-One/LVDS Tx IP,在 GF 22FDX 中经过硅验证 详细介绍:
- 查看 V-by-One/LVDS Tx IP,在 GF 22FDX 中经过硅验证 完整数据手册
- 联系 V-by-One/LVDS Tx IP,在 GF 22FDX 中经过硅验证 供应商

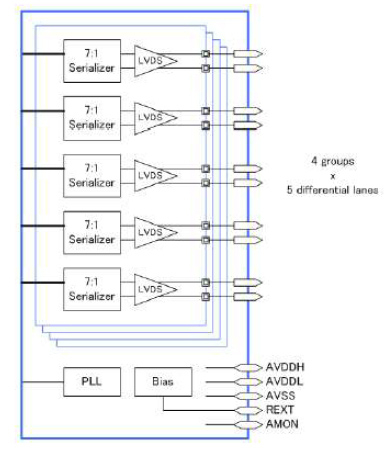

Block Diagram of the V-by-One/LVDS Tx IP,在 GF 22FDX 中经过硅验证
