V-by-One 1.4 Receiver
特色
- Compliant with V-by-One 1.4 specification
- Support for up to 4 channels, with up to 4 Gbps data rate per channel
- CDR support to resolve skew problems between clock and data in conventional transfer systems
- Supports up to 40-bit Deep-Color in RGB/YCbCCr/RGBW/RGB/Y format Digital Video Output with selectable edge clocking
- Supports scrambling
- Fully configurable Color Depth and Color Mode
- Supports Byte Mode auto detect
- Power Consumption:
- Analog: 28 mA, 1.1 V + 2 mA, 1.8 volt
- Digital: 6 mA, 1.1 V
查看 V-by-One 1.4 Receiver 详细介绍：
- 查看 V-by-One 1.4 Receiver 完整数据手册
- 联系 V-by-One 1.4 Receiver 供应商

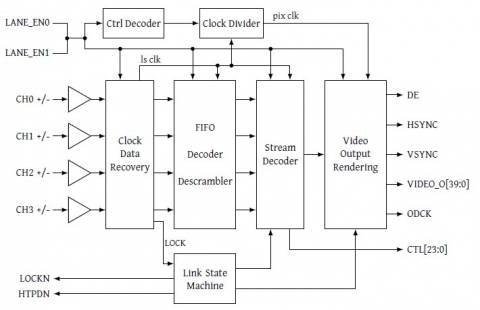

Block Diagram of the V-by-One 1.4 Receiver
