USB 3.0 Gen1 / Gen2 Host Controller IP

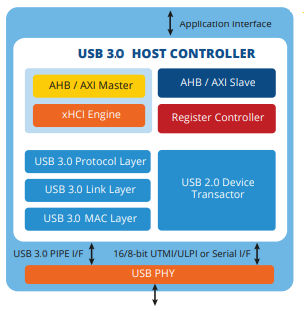

We provide highly configurable and scalable USB 3.1 host/device/dualmode controller IP Cores for a wide range of applications. The USB3.0 host controller is a highly integrated and cost-effective IP. It contains a USB3.0 PHY and a USB2.0 PHY. The USB3.0 PHY is used for Super-Speed (SS) transfers and the USB2.0 PHY is used for High-Speed (HS), Full-Speed (FS), and Low-Speed (LS) transfers. The USB 3.0 controller is designed for compliance with USB3.0 specification, Revision 1.0 and all associated ECNs, as well as USB specifications Rev 2.0 and associated ECNs. The USB 3.0 host controller based on xHCI specification, can be used in systems running any OS which provides xHCI/USB stacks, such as Android, Linux, or Windows. The USB 3.0 host controller exposes either an AXI or AHB master interface for the data path and an AHB slave interface for register access. Optionally, an interoperate proven third-party PCIe-AXI/AHB bridge can be provided for use in standard desktop/server applications.
