USB 2.0 OTG Dual Role Device
The Arasan USB 2.0 OTG DRD IP Core is compliant with the OTG Supplement Rev. 1.0a. The USB 2.0 OTG DRD core supports the Host Controller, Device Controller, and OTG functionality. It supports Hi-Speed (480 Mbps), Full Speed (12 Mbps), and Low Speed (1.5 Mbps) (USB 2.0 Speeds) specifications. AHB interface is available to provide a high-speed connection to the USB interface.
Session Request Protocol (SRP) and Host Negotiation Protocol (HNP) are managed by the SRP/ HNP Control Logic. SRP allows a Peripheral (B-device) to request a Host (A-device) to turn on Vbus to start a session, while HNP allows two connected dual-role devices to change roles and eliminates the need for the user to switch cable connections. The Vbus Control Circuit supports the generation of data-line pulsing and Vbus pulsing methods when initiating the SRP as a B-device, the detection of both pulsing methods when acting as an A-device, and the sourcing of a minimum of 8 mA on Vbus. The Vbus Control Circuit also handles the pull-up and pull-down connections to D+ during host/device role switching. The SRP/HNP Logic and Vbus Control Circuit control the operating mode of a USB port as either a host or a peripheral. The Arasan USB 2.0 OTG port requires an external USB 2.0 transceiver with a standard UTMI interface.
Session Request Protocol (SRP) and Host Negotiation Protocol (HNP) are managed by the SRP/ HNP Control Logic. SRP allows a Peripheral (B-device) to request a Host (A-device) to turn on Vbus to start a session, while HNP allows two connected dual-role devices to change roles and eliminates the need for the user to switch cable connections. The Vbus Control Circuit supports the generation of data-line pulsing and Vbus pulsing methods when initiating the SRP as a B-device, the detection of both pulsing methods when acting as an A-device, and the sourcing of a minimum of 8 mA on Vbus. The Vbus Control Circuit also handles the pull-up and pull-down connections to D+ during host/device role switching. The SRP/HNP Logic and Vbus Control Circuit control the operating mode of a USB port as either a host or a peripheral. The Arasan USB 2.0 OTG port requires an external USB 2.0 transceiver with a standard UTMI interface.
查看 USB 2.0 OTG Dual Role Device 详细介绍:
- 查看 USB 2.0 OTG Dual Role Device 完整数据手册
- 联系 USB 2.0 OTG Dual Role Device 供应商

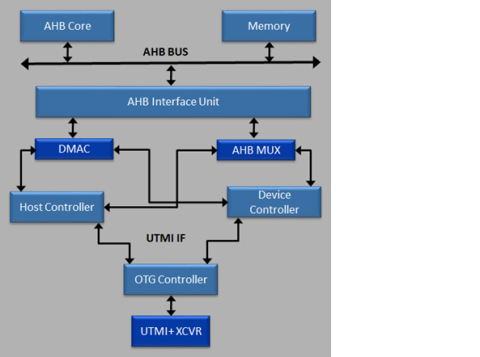

Block Diagram of the USB 2.0 OTG Dual Role Device
