USB 2.0 Device, Software based enumeration RAM Interface (USB20SR)
The USB20SR is a USB 2.0 Device, Software based enumeration RAM Interface IP Core. The core is RAM based with 32-bit Avalon interface and supports ULPI interface and Software Enumeration. It supports both High Speed (480 Mbps) and Full Speed (12 Mbps) functionality along with three preconfigured endpoints Control, IN, and OUT. It can be configurable up to 15 IN/OUT endpoints on customer request on chargeable basis. Each configurable endpoint has an endpoint controller that supports interrupt, bulk, and isochronous transfers.
查看 USB 2.0 Device, Software based enumeration RAM Interface (USB20SR) 详细介绍:
- 查看 USB 2.0 Device, Software based enumeration RAM Interface (USB20SR) 完整数据手册
- 联系 USB 2.0 Device, Software based enumeration RAM Interface (USB20SR) 供应商

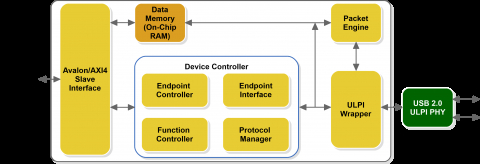

Block Diagram of the USB 2.0 Device, Software based enumeration RAM Interface (USB20SR)
