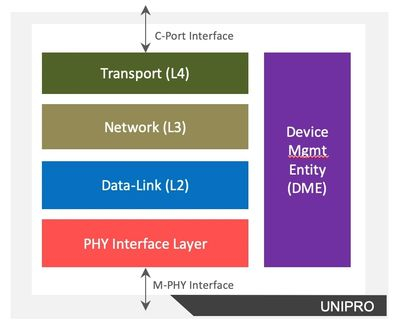

UniPro 2.0 & Silicon Proven v1.8, v1.61

特色

Compliant with MIPI UniPro Standard v2.0, v1.8 & v1.61 and MPHY standard 3.x, 4.x
Programmable 1, 2, or 4 data lanes
Supports M-PHY HS data rates HS-Gear-1,Gear-2, Gear-3, both A/B modes and PWM data rates PWM-G1 to PWM-G7
Supports End to End flow control.
Supports all traffic classes.
Supports preemption of high priority frames.
Supports maximum of 32 C-Ports.
Employs Round Robin arbitration across C-Ports.
Supports group acknowledgement of maximum 16 frames per traffic class.
Supports retransmission of frames.
Configurable buffer spaces.
Supports CSD, CSV.
Supports UniPro Test Feature.
TMPI Support.
Efficient Power Management
