Ultra-small footprint, static framing, DPTx 1.4 IP core

特色

• DisplayPort 1.4 compatible.
• Ultra-small footprint (1k LUT minimum, 3.5k LUT maximum).
• Hardware proven on AMD/Xilinx 28nm FPGA fabric.
• Ships with an example project which demonstrates the following:
• Link initialization at 5.4 Gbps.
• Initialization of the DPTx core.
• Output a test video pattern with 4k60 framing.
• Commercial or Academic licenses available.

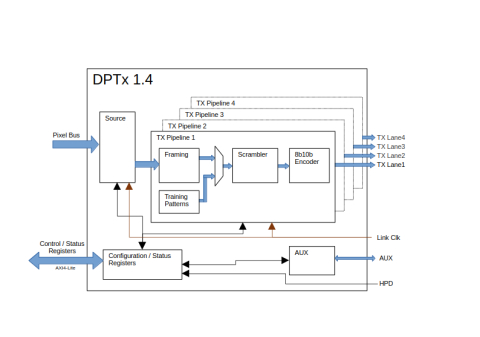

Block Diagram of the Ultra-small footprint, static framing, DPTx 1.4 IP core
